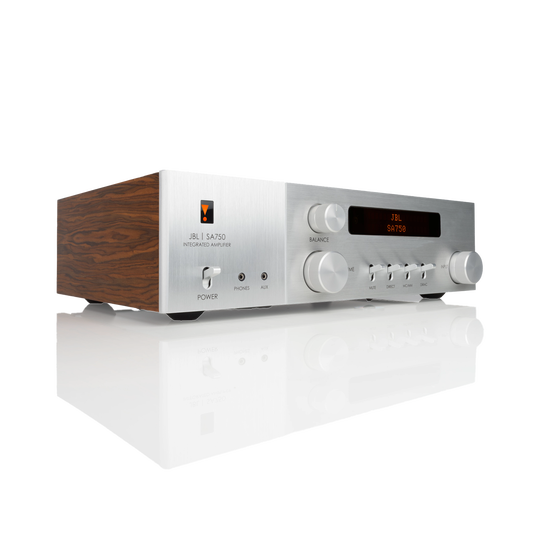

JBL SA750
The JBL SA750 is inspired by the classic JBL SA600 amplifier from the 1960’s, with retro styling and walnut veneer side panels to match JBL loudspeakers on the outside, with state-of-the-art streaming audio, wireless connectivity, Dirac Live room correction and Class G amplifier technology on the inside.
Variations
Features
Retro-styled integrated amplifier with modern features
High-resolution DAC with UPnP Streaming, Apple Airplay2 and Google Chromecast built-in

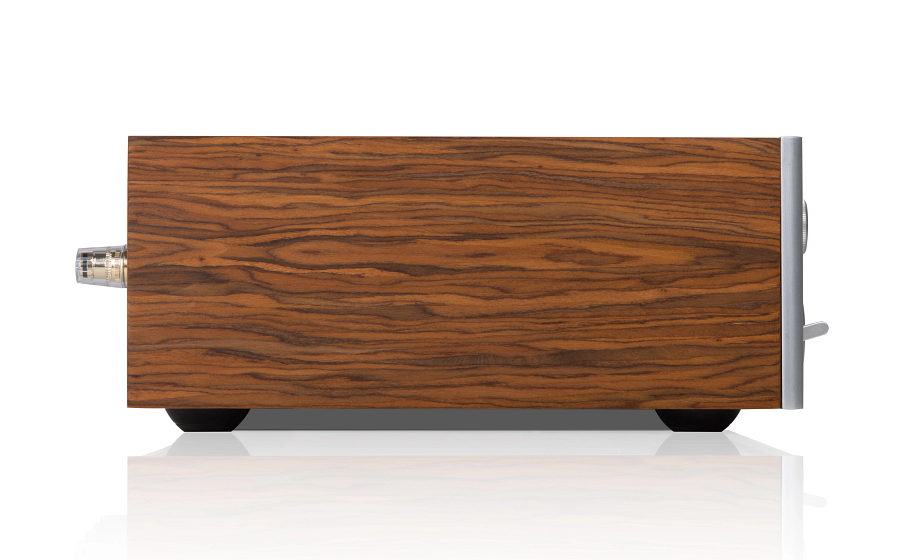

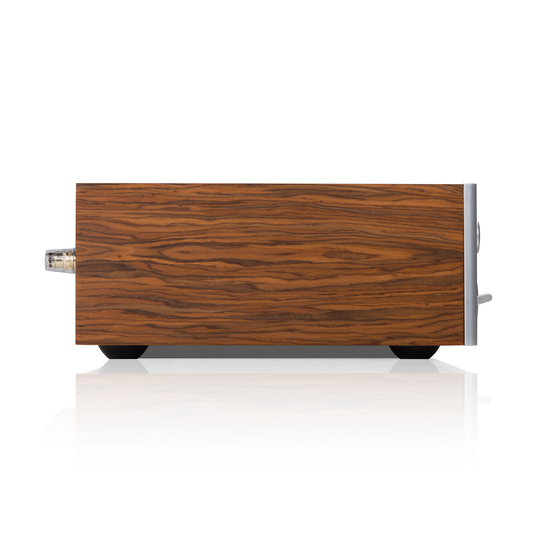

Natural wood veneer side panels to match JBL loudspeakers
120W of power per channel into 8Ω, 220W into 4Ω
DIRAC Live to fine-tune the output of speakers and subwoofers to the listening space (Calibration microphone included).

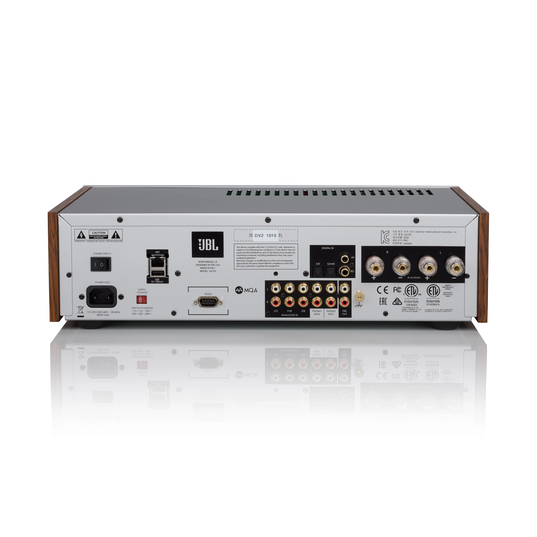

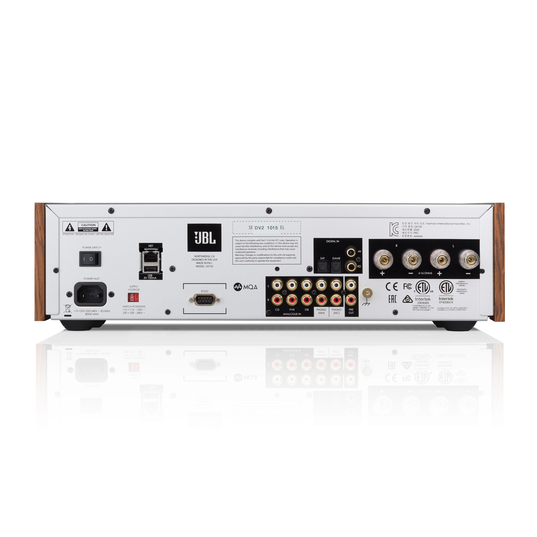

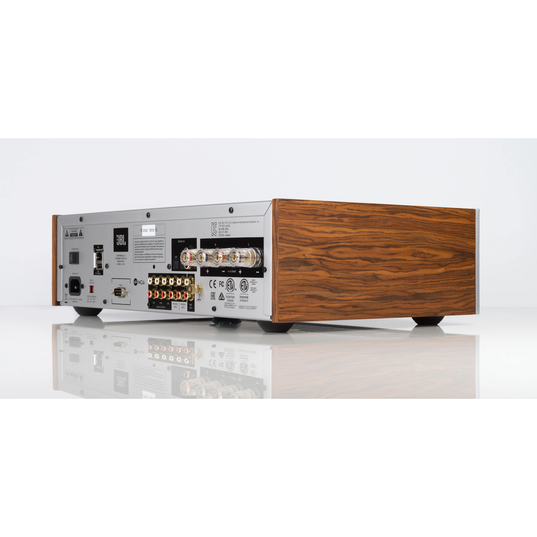

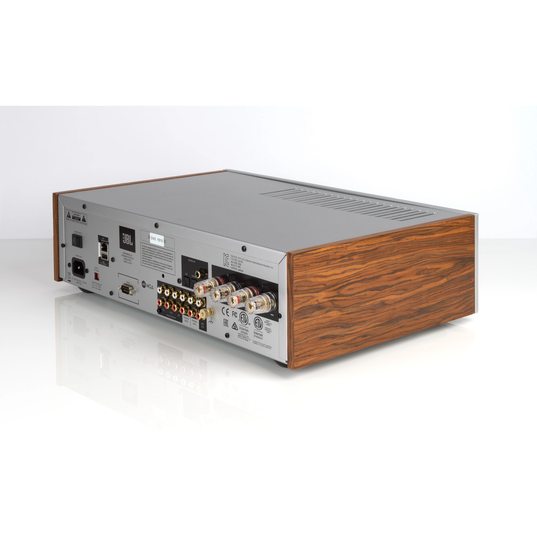

4 digital and 5 analog inputs including MM/MC Phonograph input
Specs & Downloads
Item#: JBLSA750AS
Product Description
JBL SA750

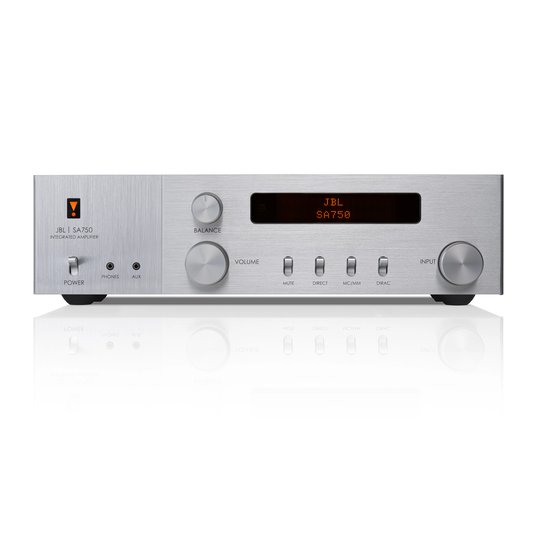

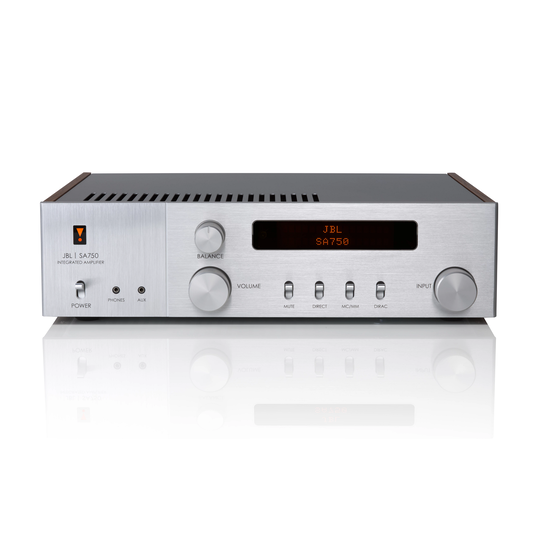

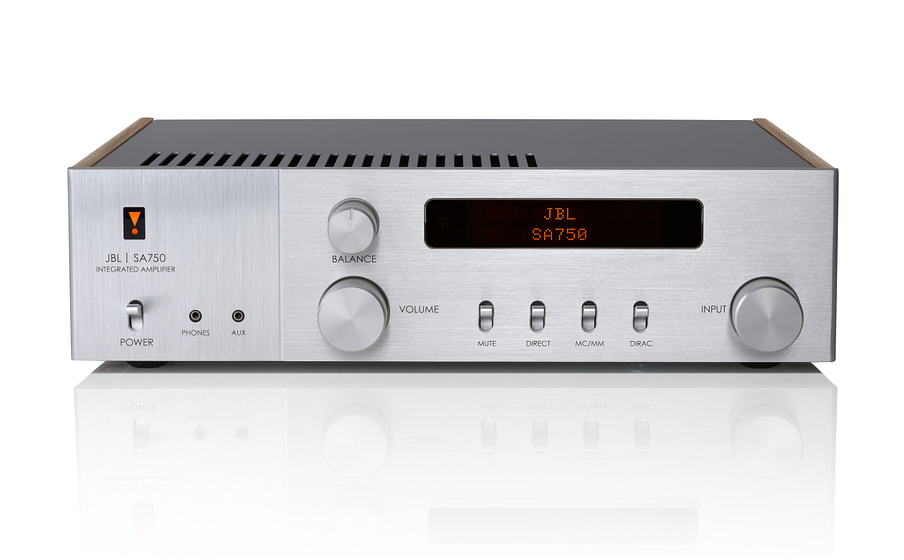

The SA750 is a throw-back to early JBL receivers. But with a modern amber LED display, exceptional dynamic range and connectivity, the SA750 is a modern classic rooted in today’s best technologies. It is designed to complement JBL Classic and Studio Monitor loudspeakers.
With the JBL SA750 you can play your favorite music over with Chromecast built-in, Apple AirPlay2, Roon, or the Harman MusicLife app. It includes DIRAC Live to fine-tune the output of your speakers into the listening room. A high-performance, high-resolution DAC ensures exceptional performance every time.
Class G amplification utilises multiple power supplies to deliver the first 20W per channel with no distortion. The amplifier can deliver continuous output of 120W per channel for sustained dynamic music.
With eight digital and analog inputs, including MM/MC phono inputs, the SA750 is ready for any audio source.
General Specifications
Frequency Response
20Hz – 20kHz ± 1dB
Nominal Sensitivity
1V
Input Impedance
10kΩ
Power output both channels driven
120W into 8Ω, 220W into 4Ω
Maximum Input
6Vrms
Total harmonic distortion + noise
0.002%
Signal/Noise ratio (A-wtd) 50W, ref. 1V input
120dB
Mains Voltage
110-120V or 220-240V, 50-60Hz
Maximum Power Consumption
800W
Product Dimensions (WxHxD, including feet, control knob, and speaker terminals)
449 x 114 x 327mm
Product Weight
12kg
Shipping Weight
14kg
Warranty
5 Years
