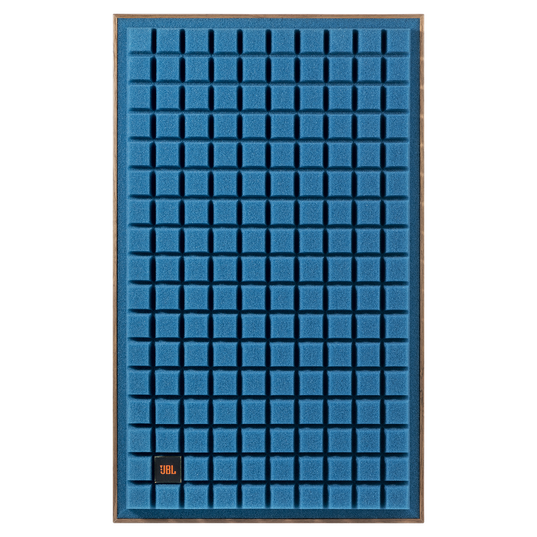

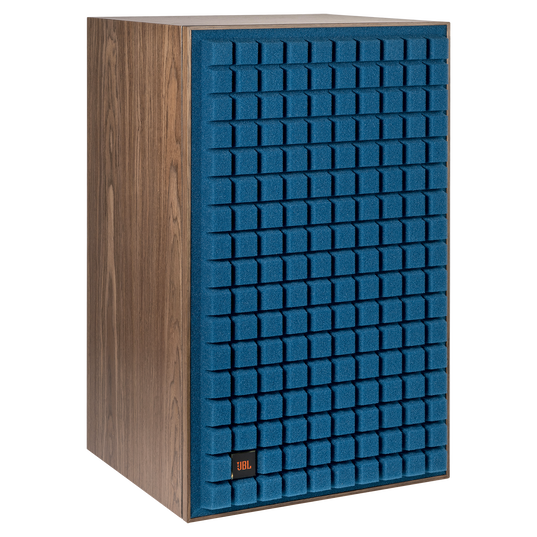

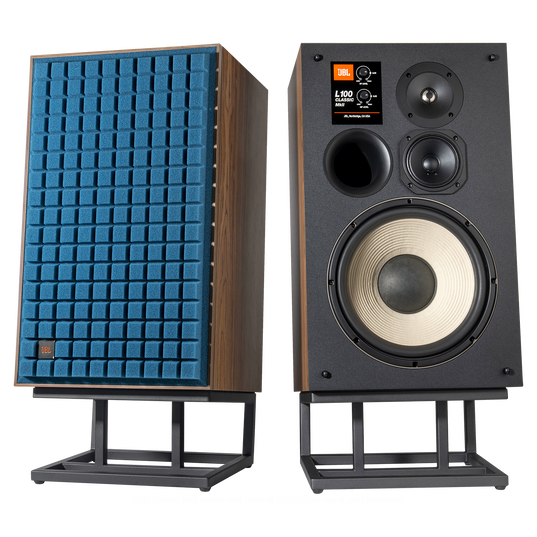

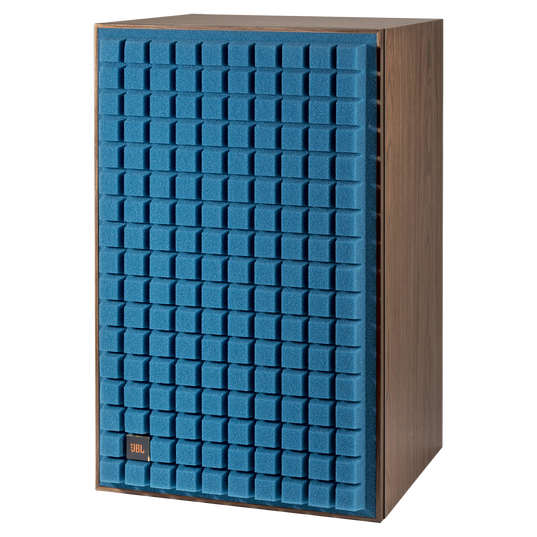

L100 Classic MkII
The L100 Classic MkII is the next evolution in the reborn legend that is the JBL Classic Series. This 12-inch (300mm) 3-way bookshelf loudspeaker features upgraded JBL acoustic components to improve the sound quality of this Classic loudspeaker. In addition to performance enhancements to the woofer, midrange, and tweeter the L100 Classic MkII features a revised crossover network to include bi-wire/bi-amp capabilities via a premium terminal cup with dual sets of gold-plated binding posts. The L100 Classic MkII features a genuine walnut satin wood veneer cabinet and a striking Quadrex foam grille available in a choice of black, orange or blue. Beneath this compelling exterior lie modern acoustic components that deliver stunning sound and imaging sure to please any music lover.
Features
Retro design with iconic JBL styling and vintage Quadrex foam grille in a choice of black, orange, or blue
12-inch (300mm) cast-frame with Pure Pulp white cone woofer with dual spider
Separated Bi-wire / Bi-amp crossover network and dual sets of gold-plated binding posts
5.25-inch (130mm) Polymer-coated Pure Pulp cone midrange driver
1-inch (25mm) Titanium dome tweeter mated to acoustic lens waveguide
High-frequency and Mid-frequency level attenuators
Genuine Satin Wood Veneer Finish
Recommended JS-120 / JS-150 speaker stands (sold separately)
Specs & Downloads
Item# JBLL100MK2BLU
Product Description
L100 Classic MkII
The L100 Classic MkII is the next evolution in the reborn legend that is the JBL Classic Series.
This 12-inch (300mm) 3-way bookshelf loudspeaker features upgraded JBL acoustic components to improve the sound quality of this Classic loudspeaker. In addition to performance enhancements to the woofer, midrange, and tweeter the L100 Classic MkII features a revised crossover network to include bi-wire/bi-amp capabilities via a premium terminal cup with dual sets of gold-plated binding posts. The L100 Classic MkII features a genuine walnut satin wood veneer cabinet and a striking Quadrex foam grille available in a choice of black, orange or blue.
Beneath this compelling exterior lie modern acoustic components that deliver stunning sound and imaging sure to please any music lover.
General Specifications
Speaker Type
12-inch (300mm) 3-way Bookshelf Loudspeaker
Low Frequency Driver
12-inch (300mm) cast-frame Pure Pulp cone woofer with Dual Spider (JW300SW-8)
Mid Frequency Driver
5.25-inch (130mm) Polymer-coated Pure Pulp cone (JM125PC-8)
High Frequency Driver
1-inch (25 mm) Titanium dome tweeter mated to acoustic lens and waveguide (JT025Ti2-4)
Recommended Amplifier Power
25-200 Watts RMS
Impedance
4 ohms
Sensitivity (2.83V/1m)
90dB
Frequency Response
40Hz-40kHz (-6dB)
Crossover Frequencies
450Hz, 3.5kHz
Finish
Natural Walnut veneer with Black, Orange, or Blue Quadrex Foam Grille
Dimensions With Grille (HxWxD)
25.3-inch x 15.4-inch x 14.4-inch
Controls
Attenuators for MF and HF level control
Connector Type
Dual sets of Gold-plated Binding Posts
Product Weight ea
63 lb (28.6 kg) each
Shipping Weight ea
73 lb (33.1 kg) each
Shipping Units of Measure
Single Speaker
Recommended Stand Height
7in (180mm)
Recommended Stand
JBL JS-120 or JS-150 (Sold Separately)
What's in the box?
- 1x L100 Classic MkII Edition Loudspeakers
- 2x Quadrex Foam Grilles
- 1x Quick Start Guide
