Features
Dedicated center channel driver provides superior voice clarity
A dedicated center channel delivers film and TV dialogue with amazing clarity. You'll never ask "What did they just say?" again.

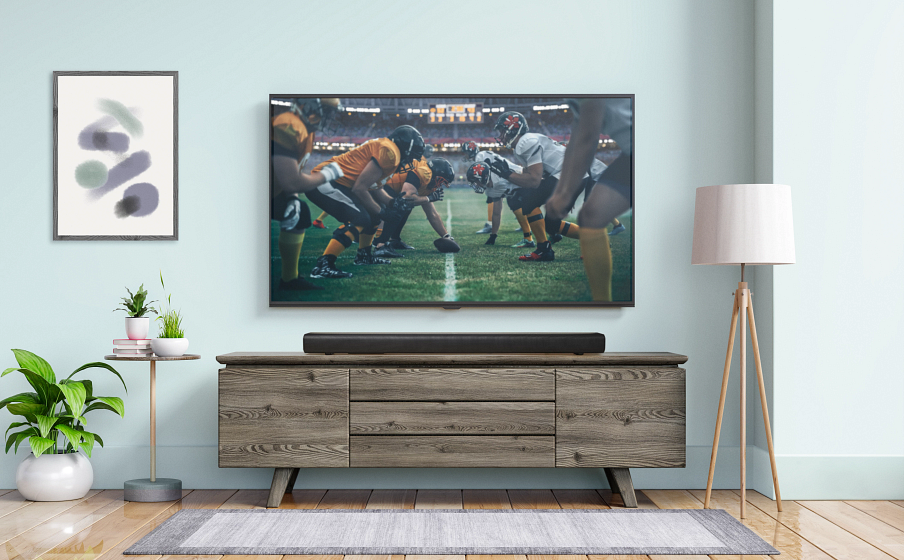

Built-in subwoofer
The built-in subwoofer delivers deep bass without the need for another box or extra cables to clutter up your space.
One cable connection with HDMI ARC
The one cable HDMI ARC connection allows for the simplest set-up and a hassle-free user experience.
Wireless music streaming via Bluetooth
Stream and enjoy all your music wirelessly from any mobile device.
Dolby Audio embedded
Delivers powerful sound that enhances any movie experience.
Specs & Downloads
Item# JBLSB510BLKAS
Product Description
Compact size. Epic sound.

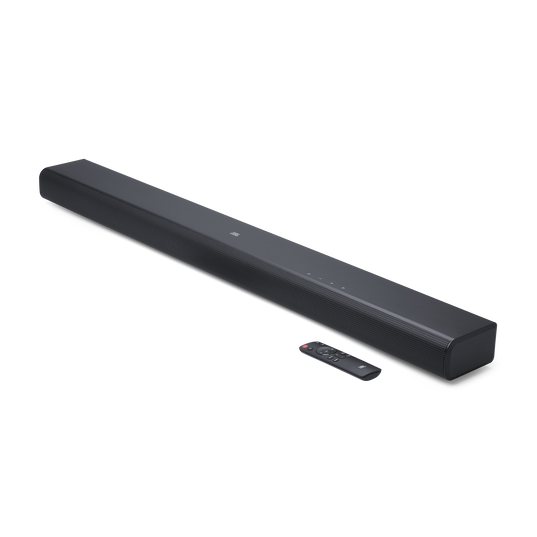

The JBL Cinema SB510 is a 3.1 channel all-in-one soundbar with a built-in subwoofer. It delivers 200 watts of powerful Dolby Audio with deep bass, all in a hassle-free, compact design that fits neatly into any room. A dedicated center channel driver means TV and film dialogue is always crystal clear. Setup is easy using either one-cable HDMI ARC or optical connections, and convenient Bluetooth connectivity means you can use it for wireless music streaming from any device.
General Specifications
Model
CINEMA SB510
Sound system
3.1 channel
Power supply
100 - 240V AC, ~ 50/60Hz
Total speaker power output (Max @THD 1%)
200W
Soundbar output power (Max @THD 1%)
150W
Subwoofer output power (Max. @THD 1%)
50W
Soundbar transducer
3x (45 x 80) mm racetrack drivers
Subwoofer transducer
1x (70 x 88) mm, built-in subwoofer
Standby power
< 0.5W
Operating temperature
0°C - 45 °C
Audio Specifications
Frequency response
55Hz-20kHz (-10dB)
Audio inputs
1 Optical, Bluetooth and USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
Soundbar dimensions (W x H x D)
950 x 67 x 105 mm / 37.4’’ x 2.6’’ x 4.1’’
Soundbar weight
3.5kg / 7.7 lbs
Packaging dimensions (W x H x D)
1112 x 116 x 164 mm / 43.8" x 4.6" x 6.5"
Packaging Weight
5.0kg / 11.0 lbs
Control and Connection Specifications
USB port
Type A
USB rating
5V DC, 0.5A
Supporting file formats
mp3
MP3 codec
MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate
16 - 48 kHz
Bluetooth version
5.3
Bluetooth profile
A2DP 1.3, AVRCP 1.6
Bluetooth transmitter frequency range
2400 MHz – 2483.5 MHz
Bluetooth Max. transmitting power
<10 dBm (EIRP)
Bluetooth modulation
GFSK, π/4 DQPSK, 8DPSK

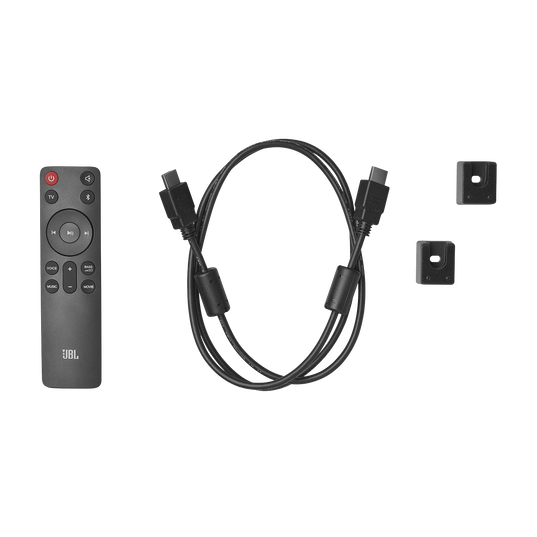

What's in the box?
- Soundbar
- Remote control with batteries
- Power cables (up to 4pcs depending on region SKUs)
- HDMI cable
- Wall-mount bracket kit with screws
- Quick start guide
- Warranty card
- Safety sheet
