JBL Cinema SB160
Variations

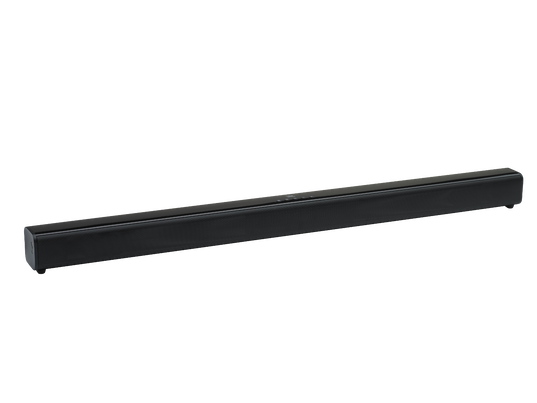

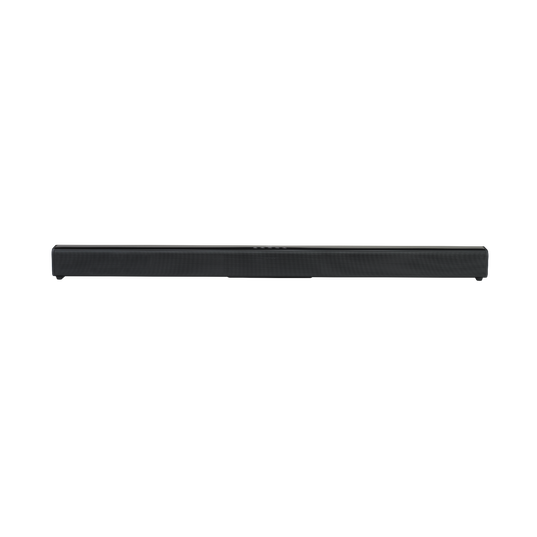

_1605x1605px.png?sw=537&sfrm=png "JBL Cinema SB160 - Black - 2.1 Channel soundbar with wireless subwoofer - Front")
Features
220W power output
Incredible, powerful sound for an immersive cinematic experience.

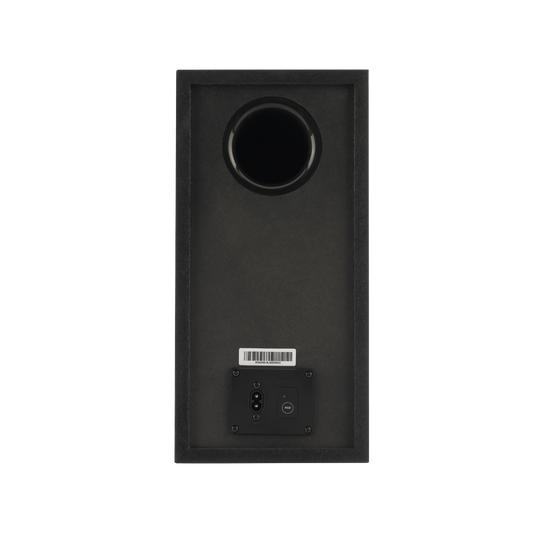

Wireless subwoofer for extra deep bass
Enjoy deep and thrilling bass and clutter-free experience.
Dolby Digital embedded
Dolby Digital embedded for ultimate movie experience.
Wireless music streaming via Bluetooth
Stream and enjoy all your music wirelessly from any mobile device.
One cable connection with HDMI ARC
The one cable HDMI ARC connection allows for the simplest set-up and a hassle-free user experience.
Specs & Downloads
Item# JBLSB160BLKAS
Product Description
Extra Bass. Extraordinary sound.
The JBL Cinema SB160 features 220W system power, Dolby Digital, Optical and HDMI ARC, four powerful full range drivers and comes with a wireless subwoofer. Enjoy impressive, balanced sound with extra deep bass for movies and music entertainment. Plus, it’s Bluetooth-enabled so you can play your favorite music wirelessly from any smartphone, tablet or laptop and features a one cable HDMI ARC connection that ensures a hassle-free user experience.
General Specifications
Power supply
100 - 240VAC, ~ 50/60Hz
Total speaker power output (Max. @THD 1%)
220W
Soundbar power output (Max. @THD 1%)
2 x 52W
Subwoofer power output (Max. @THD 1%)
116W
Soundbar transducer
2 x (48 x 90)mm racetrack driver + 2 x 0.5" tweeter

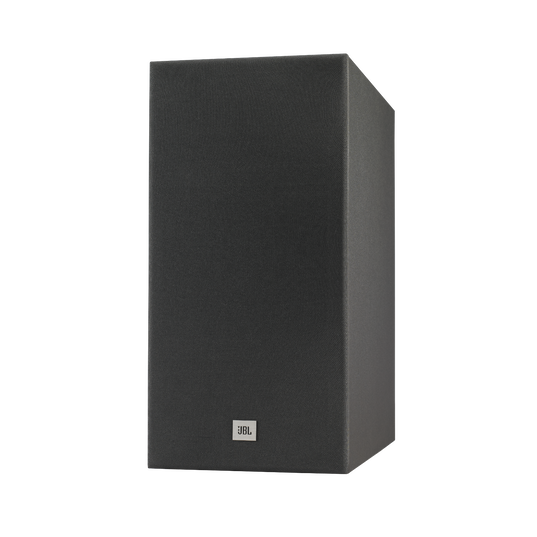

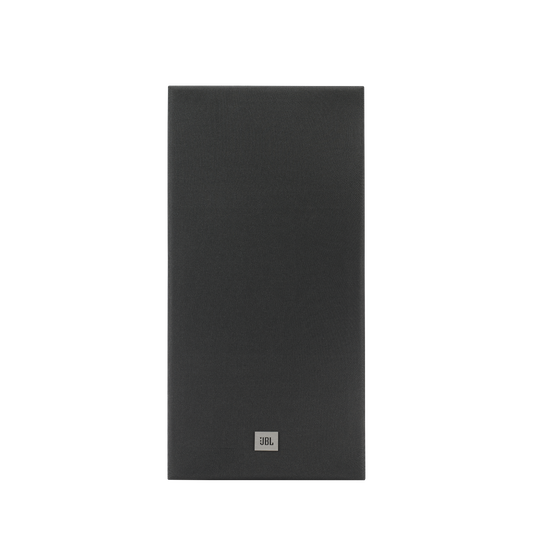

Subwoofer transducer
5.25", wireless sub
Operating temperature
0°C - 45°C
Audio Specifications
Max SPL
82dB
Frequency response
40Hz - 20kHz
Audio inputs
1 Optical, Bluetooth(USB is for Service only.)
Dimensions
Soundbar dimensions (W x H x D)
900 x 67 x 63(mm) / 35.4" x 2.6" x 2.5"
Subwoofer dimensions (W x H x D)
170 x 345 x 313(mm) / 6.7" x 13.6" x 12.3"
Soundbar weight
1.65kg
Subwoofer weight
5kg
Packaging dimensions (W x H x D)
975 x 195 x 445mm / 38.4" x 6.7" x 17.5"
Packaging weight (Gross weight)
8.5kg
Control and Connection Specifications
Bluetooth version
4.2
Bluetooth profile
A2DP V1.3/AVRCP V1.5
Bluetooth frequency range
2402MHz - 2480MHz
Bluetooth max. transmitting power
<0dbm (EIRP)
Modulation type
GFSK, π/4 DQPSK
2.4G Wireless frequency range
2400 - 2483MHz
2.4G Max. transmitting power
3dBm
USB port
Type A
USB rating
5VDC/ 0.5A
Supporting file format
mp3, wav
MP3 Codec
MPEG 1 Layer 2/3
MPEG 2 Layer 3
Yes
MPEG 2.5 Layer 3
Yes
MP3 sampling rate
16kHz - 48kHz
MP3 bitrate
80kbps - 320kbps
80kbps - 160kbps (MPEG 2.5 Layer 3)
Yes
WAV sample rate
16kHz - 48kHz
WAV bitrate
Up to 3000kbps
Notification
Note
WARNING!! This product contains a button/coin cell battery and is hazardous. Keep batteries away from children. Batteries can cause severe or fatal injuries in 2 hours or less if swallowed or placed inside any part of the body. Medical attention should be sought immediately if it is suspected the battery has been swallowed or placed inside any part of the body.

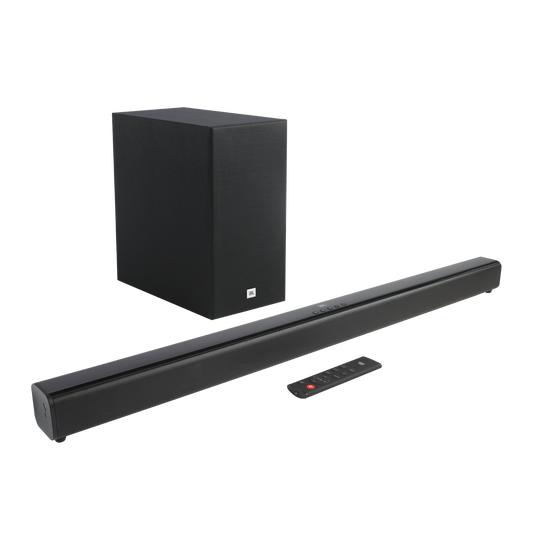

What's in the box?
- Soundbar
- Wireless subwoofer
- Remote control with batteries
- Power cords (up to 8pcs depending on region SKUs)
- HDMI cable
- Wall-mount bracket kit with screws
- Quick start guide
- Warranty card
- Safety sheet
