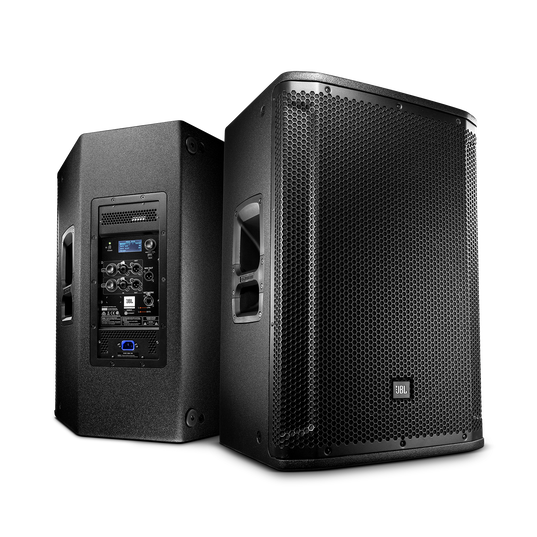

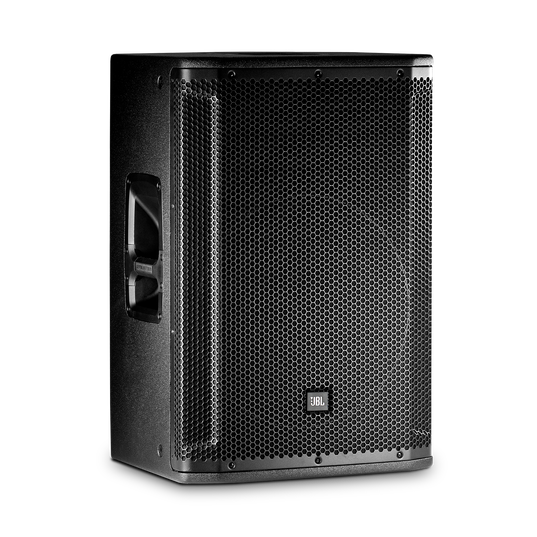

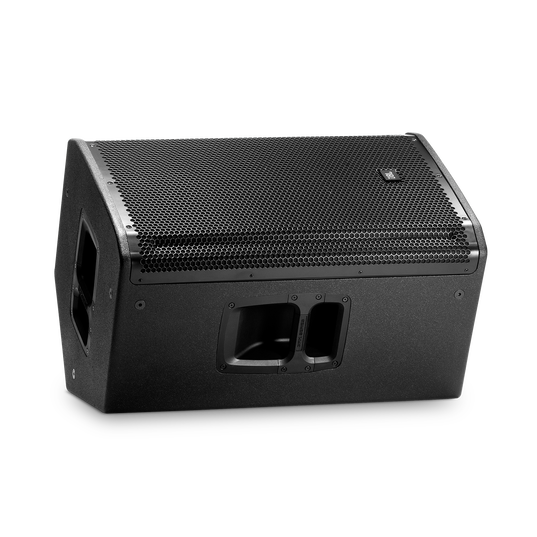

JBL SRX815P

JBL SRX815P

15" Two-Way Bass Reflex Self-Powered System

Variations



Features

Purposeful design

Purposeful design

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

Transducer technology

Transducer technology

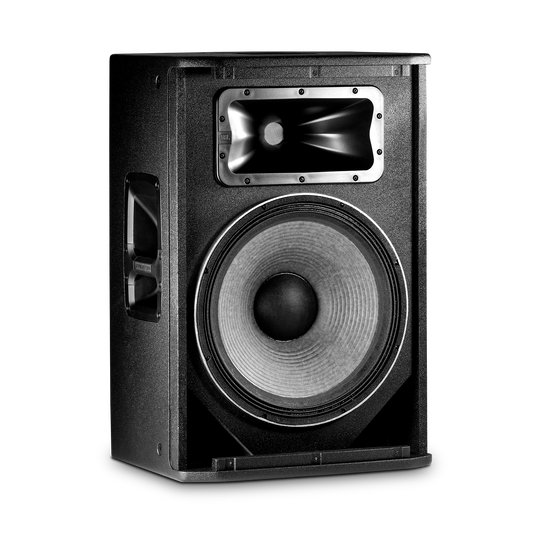

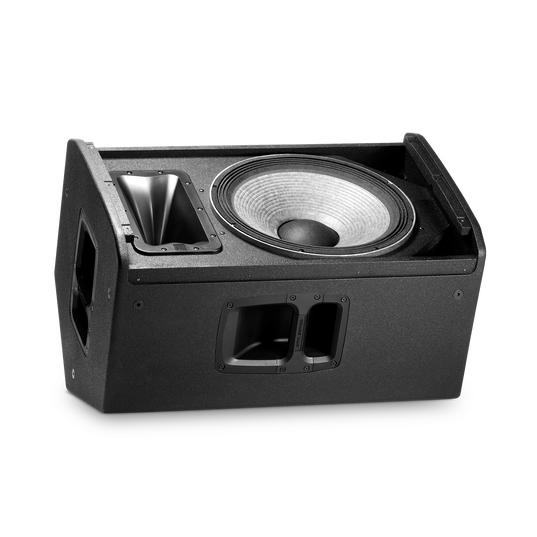

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

Drivecore by Crown

Drivecore by Crown

Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With a remarkable 103dB signal-to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its frequency range.

HiQnet network control

HiQnet network control

With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion ControlTM iOS app, and standalone applications for iOS and Android.

Unprecedented control

Unprecedented control

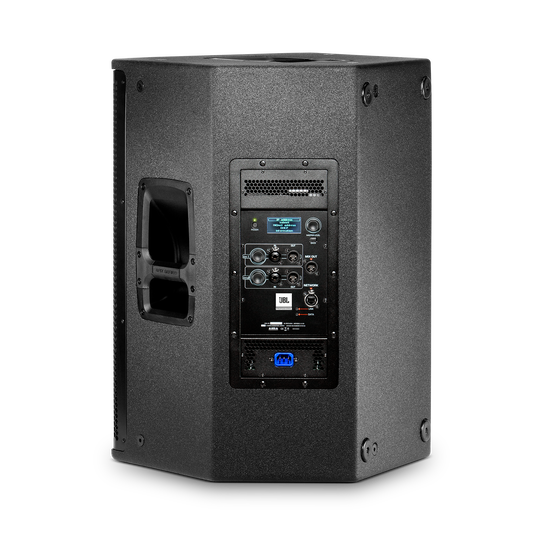

A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.

Specs & Downloads

Item# SRX815P

Product Description

Ultimate performance without compromise

The SRX800 Series is the next generation high performance powered loudspeaker system comprising three full range and two subwoofer models with an array of features that elevate the SRX800 Series to the best in class of all competitive systems. The full range 15" two-way, SRX815P features legendary JBL Drivers, proprietary 2,000 Watt Crown amplification, Crown Front-End DriveCore Technology, premium JBL user-configurable DSP, V5 Tunings compatible with Vertec and VTX touring systems, and HiQnet Network control options via iOS and Android applications. Drawing on JBL’s long history of groundbreaking technology and loudspeaker design, the SRX800 Series meets the needs of touring houses, installations, and the most demanding live sound applications ensuring they can deploy a no-compromise, all-in-one solution featuring legendary JBL sound and performance, a wide array of configurability, and compatibility with JBL’s flagship touring systems.

General Specifications

Power Rating (W, Continuous) 1500
Power Rating (W, Peak) 2000
Frequency Response Hz (±3 dB) 44 - 20,000
Maximum SPL (peak dB) 137
Coverage Pattern (Nominal) 90° x 50°

Dimensions

Width (in) 18.0
Weight (lbs) 63.0
Width (mm) 458.0
Height (in) 27.2
Height (mm) 691.0
Weight (kg) 28.6
Depth (in) 18.8
Depth (mm) 478.0

Features

Mobile app available for iOS and Android Yes
Dual-angle pole-mount socket Yes
M10 suspension points Yes
JBL professional tunings and presents available Yes
Transducer Differential Drive JBL Yes
HiQnet network control Yes

What's in the box?

  • 1 x SRX815P Speaker
  • 1 x 10' (3m) IEC Power Cable
  • 1 x Quick Start Guide
