JBL 104 (Pair)

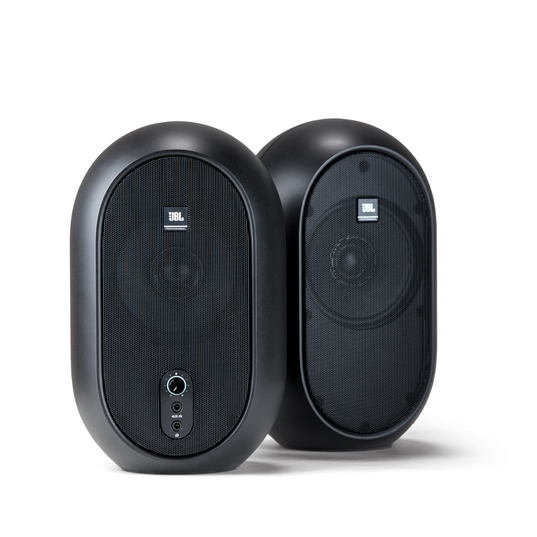

JBL 104 (Pair) - Black - Compact Powered Desktop Reference Monitors - Hero

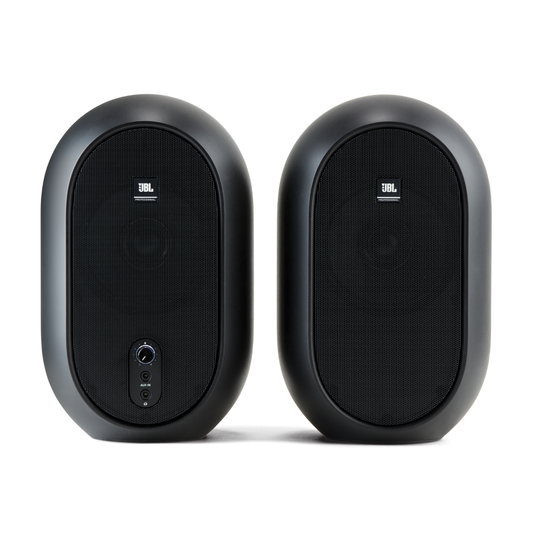

JBL 104 (Pair) - Black - Compact Powered Desktop Reference Monitors - Front

JBL 104 (Pair) - Black - Compact Powered Desktop Reference Monitors - Back

Features

Trust the Transparency

With JBL 104 Reference Monitors, you’ll hear true clarity and detail, with no coloration. The 104s deliver crisp highs and rich bass just as intended. They’re optimized for desktop placement, with neutral low-frequency performance. And their smooth off-axis response means you can monitor with confidence in a wide sweet spot.

Pro Performance, Scaled to Size

The world’s top recording studios and touring artists rely on JBL Professional monitors to deliver unparalleled fidelity and performance. Now, we’ve optimized that technology in our smallest form factor ever. The 104 Reference Monitor’s innovative new coaxial driver design features a high-frequency driver aligned with a precisely contoured woofer cone to deliver accurate response, exceptional detail and impressive off-axis performance, for the most neutral, accurate presentation, desktop to desktop, room to room. The cabinet’s precisely contoured low-frequency port works with the driver to provide accurate bass at all listening levels. And with low frequency extension down to 60 Hz, you’ll be impressed with the bass you get, even without a subwoofer.

Loud and Clear

JBL 104 Reference monitors offer this high level of performance, even at loud playback levels. This is accomplished through clean, integrated 60-watt Class D amplification that distributes 30 watts per speaker. And with their efficient design, One Series speakers can be driven to 104db SPL (peak), without the distortion found in other monitors in their class.

Coaxial woofer design

4.5-inch (118 mm) LF driver and .75-inch (19 mm) softdome HF driver

Integrated 60-watt Class D power amplifier

Distributes 30 watts to each speaker

Acoustically optimized

For desktop placement

Three sets of inputs

Allow connection with professional equipment, personal music players and consumer products

Smart features

Include front-panel volume control and headphone jack with automatic speaker mute

Red Dot Winner 2020

Specs & Downloads

Item# J104SET-US

Product Description

Punches Above Its Weight Class

JBL 104 compact, full-range, powered reference monitors draw from seven decades of JBL Professional engineering to deliver the truest, most accurate sonic presentation of any monitor in their class. Ideal for home recording enthusiasts, podcasters and video producers, as well as professionals seeking accurate portable reference monitors, JBL 104s combine powerful 4.5-inch (118 mm) low-frequency drivers with coaxial .75- inch (19 mm) soft-dome tweeters, potent 60-watt amplification and innovative acoustic design to provide exceptional imaging, neutral frequency response and crisp detail in our smallest, most affordable reference monitor yet. With their sleek, elegant design and compact form factor, they’ll make a stunning statement in any home or pro studio while conserving valuable work space. Creative professionals and music lovers alike can count on the JBL 104 to deliver a reliable sonic reference and a truly enjoyable listening experience, all at an attractive price point.

General Specifications

Low Frequency Transducer 4.5 in (118 mm)

High Frequency Transducer 0.75 in (19 mm), soft dome

Crossover 1725 Hz, 1st order

Input Sensitivity (-10 dBV Input) 87 dB / 1 m

Power Amp 60 W (30 W each speaker), Class D

Maximum Continuous SPL 89 dB

Maximum Peak SPL 102 dB

Maximum SPL, Momentary Peak 104 dB

Maximum Peak Input Level (-10 dBV / +4 dBu): +6 dBV / +20.3 dBu

Frequency Range 60 Hz – 20 kHz

System Distortion Criteria <10% THD at maximum output with full compressor / limiter engagement

Electrical Distortion Criteria <0.2%THD @ 1 kHz, 2.83 VRMS output; <1% THD @ 1 kHz, full rated output

Signal to Noise Ratio 75 dBA (A-Weighted), 70 dBr (unweighted), relative to 2.83 VRMS output on HF

Coverage (Horizontal x Vertical) 120º x 60º

Dimensions

Height 9.72 in (247 mm)

Width 6.02 in (153 mm)

Depth 4.88 in (124 mm)

Net Weight Host Monitor = 4.54 lb (2.06 kg); Extension Monitor = 3.81 lb (1.73 kg)

Design

Enclosure Type Ported

Enclosure Material ABS with metal grille

Enclosure Finish Matte black acrylic paint

Audio Output

Output Connectors 1 x 3.5 mm (1/8") stereo headphone with auto speaker mute

Audio Input

Input Connectors 2 x 1/4-inch (6.5 mm) balanced (+4 dBu); 2 x RCA (-10 dBV); 1 x 1/8-inch (3.5 mm) unbalanced (-10 dBV)

Powering Interface

AC Input Voltage 100 – 240 VAC (± 10%), 50/60 Hz

Current Draw 85 watts

Electrical Current Draw (W) Idle 100 / 240 VAC 3.52 / 3.70

Electrical Current Draw (W) Max Power 100 / 240 VAC 80 / 80

Electrical Current Draw (W) Low Power Standby Mode 100 / 240 VAC 0.34 / 0.46

What's in the box?

1 x 104 Master Monitor
1 x 104 Extension Monitor
1 x Extension monitor connection wire (2-conductor, 2 meters)
1 x Audio Connection Cable: 3.5 mm (1/8") mini TRS stereo plug to dual RCA plug
1 x Power Cord
1 x Quick setup guide
