Stage 280C
The Stage 260C has an 8" (200mm) Polycellulose cone woofer and 1" (25mm) Aluminum dome tweeter with an acoustic lens waveguide. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing and acoustic lens tweeters have been incorporated into the design to ensure that the sound is clear and accurate.
Variations
 Angled with Grille - 1605x1605.png?sw=537&sfrm=png "Stage 280C - Black - 2-way 8in (203mm) In-Ceiling Loudspeaker - Hero")

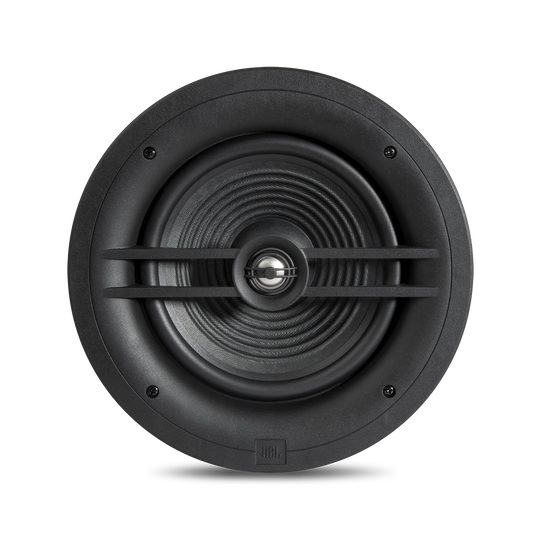

_Front_No_Grille_1605x1605.png?sw=537&sfrm=png "Stage 280C - Black - 2-way 8in (203mm) In-Ceiling Loudspeaker - Front")

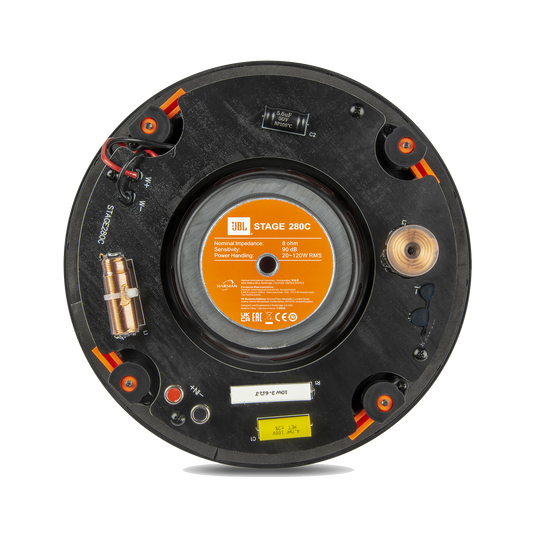

_Rear_1605x1605.png?sw=537&sfrm=png "Stage 280C - Black - 2-way 8in (203mm) In-Ceiling Loudspeaker - Back")

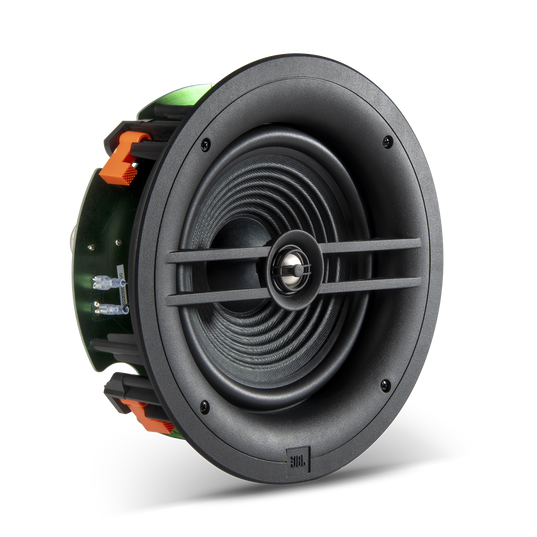

_Angled_No_Grille_1605x1605.png?sw=537&sfrm=png "Stage 280C - Black - 2-way 8in (203mm) In-Ceiling Loudspeaker - Left")

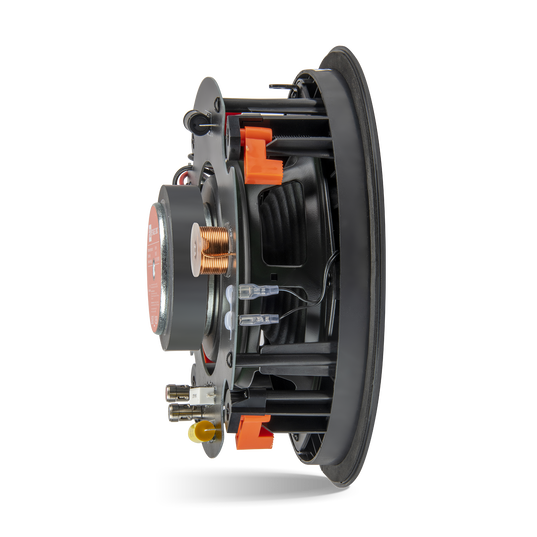

_Side_1605x1605.png?sw=537&sfrm=png "Stage 280C - Black - 2-way 8in (203mm) In-Ceiling Loudspeaker - Right")
Features

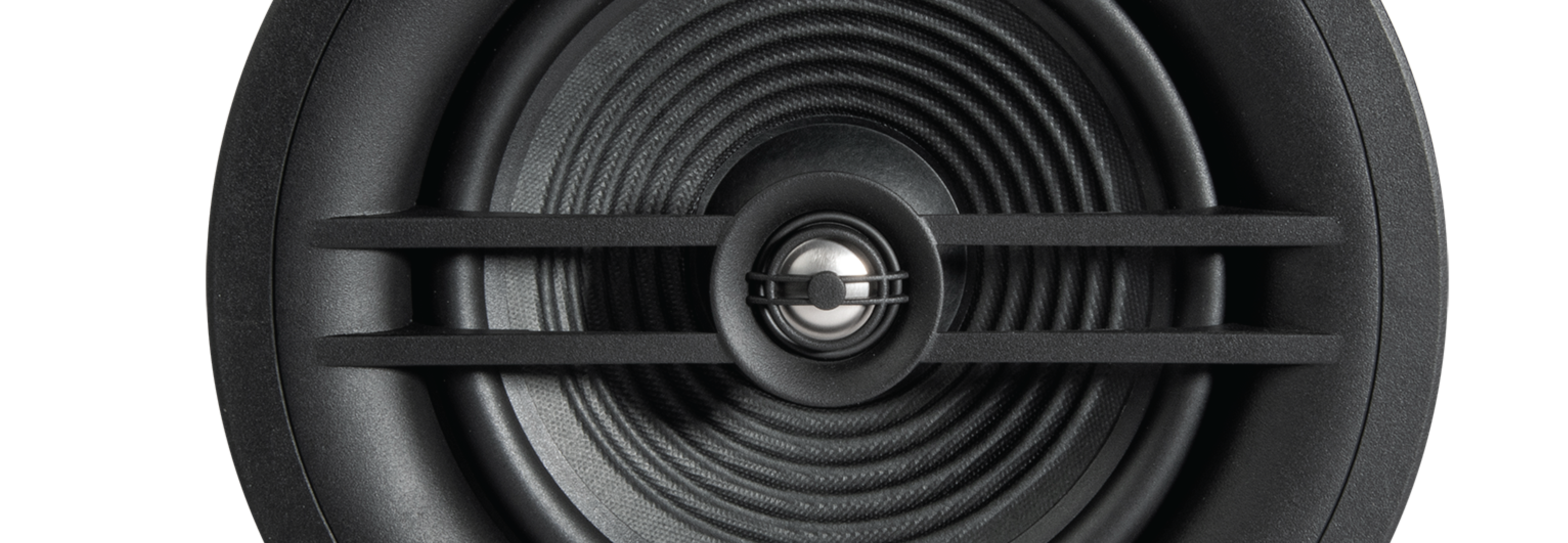

1" (25mm) Aluminum dome with acoustic lens waveguide

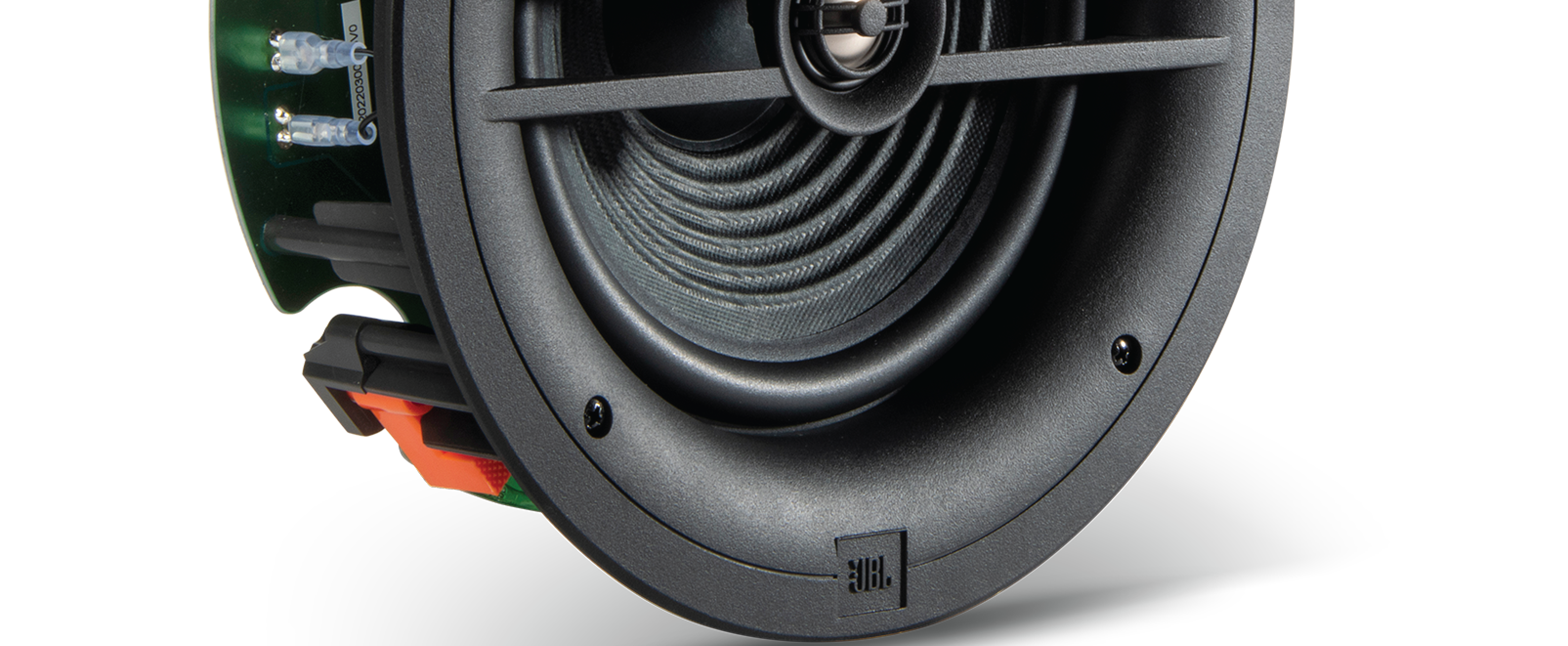

8" (200mm) Polycellulose cone woofer

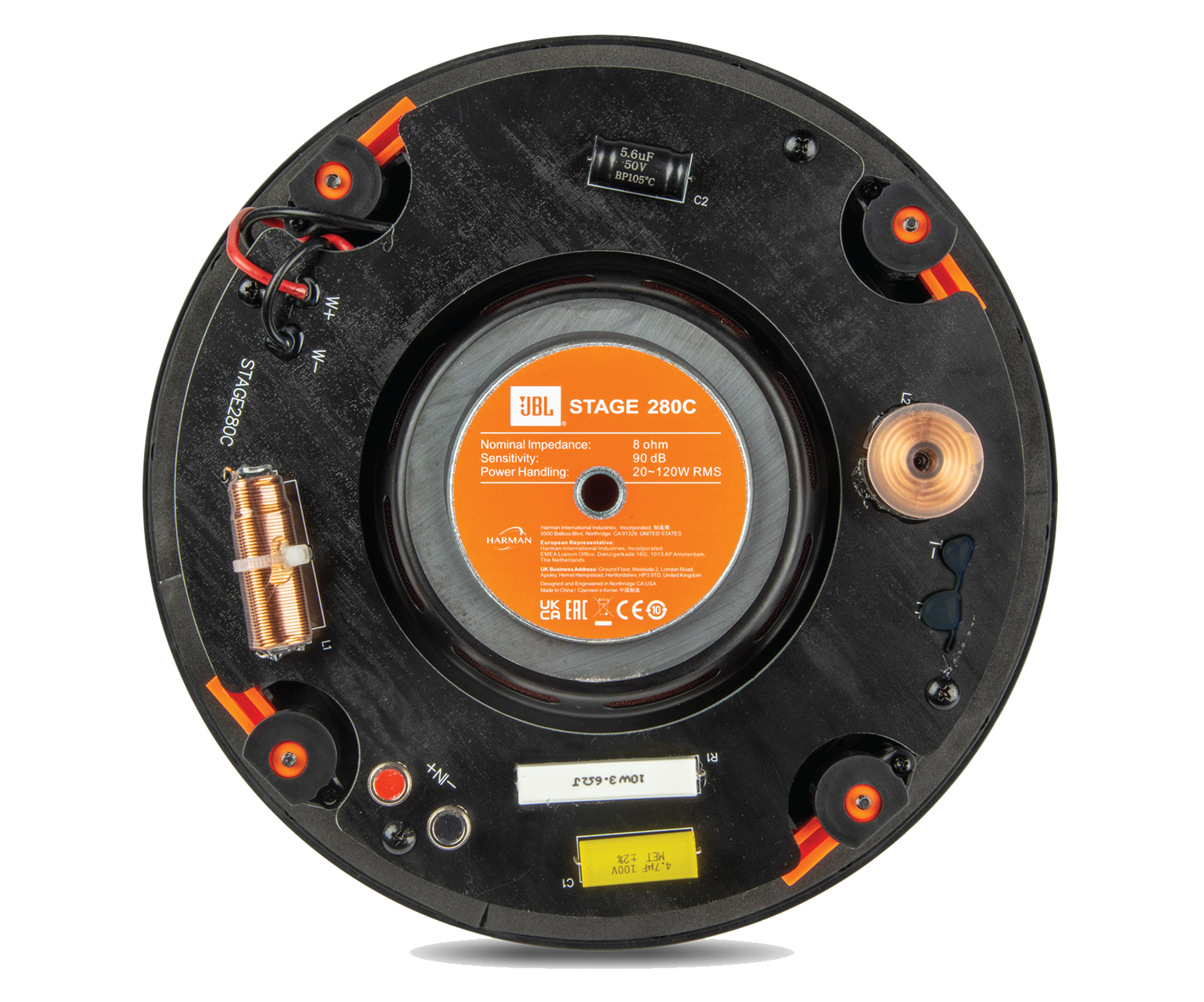

Premium air-core inductors and mylar cap capacitor crossover network components ensure that sound remains dynamic at all listening levels.

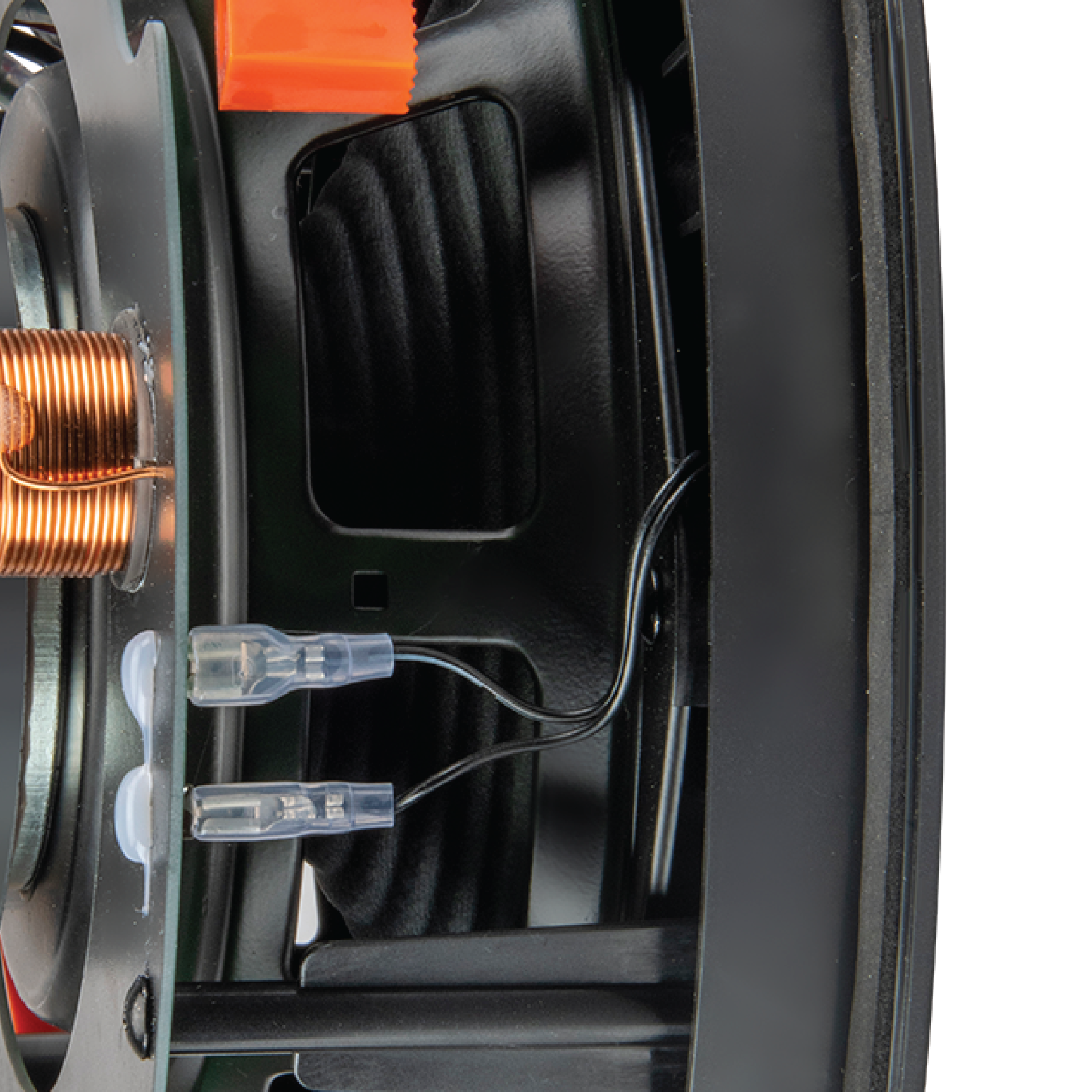

Rigid Baffle design with acoustic smoothing for improved transducer integration

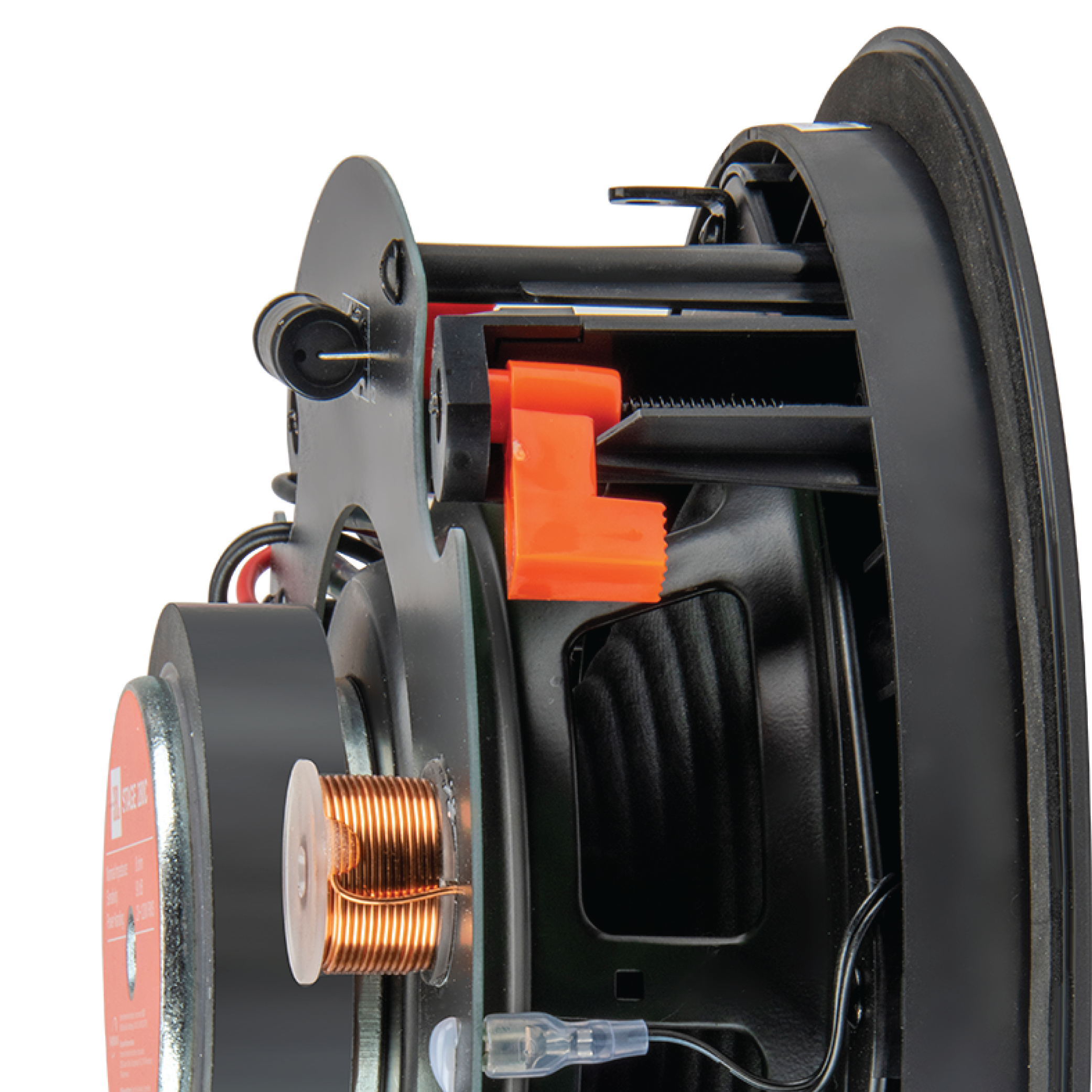

XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material.

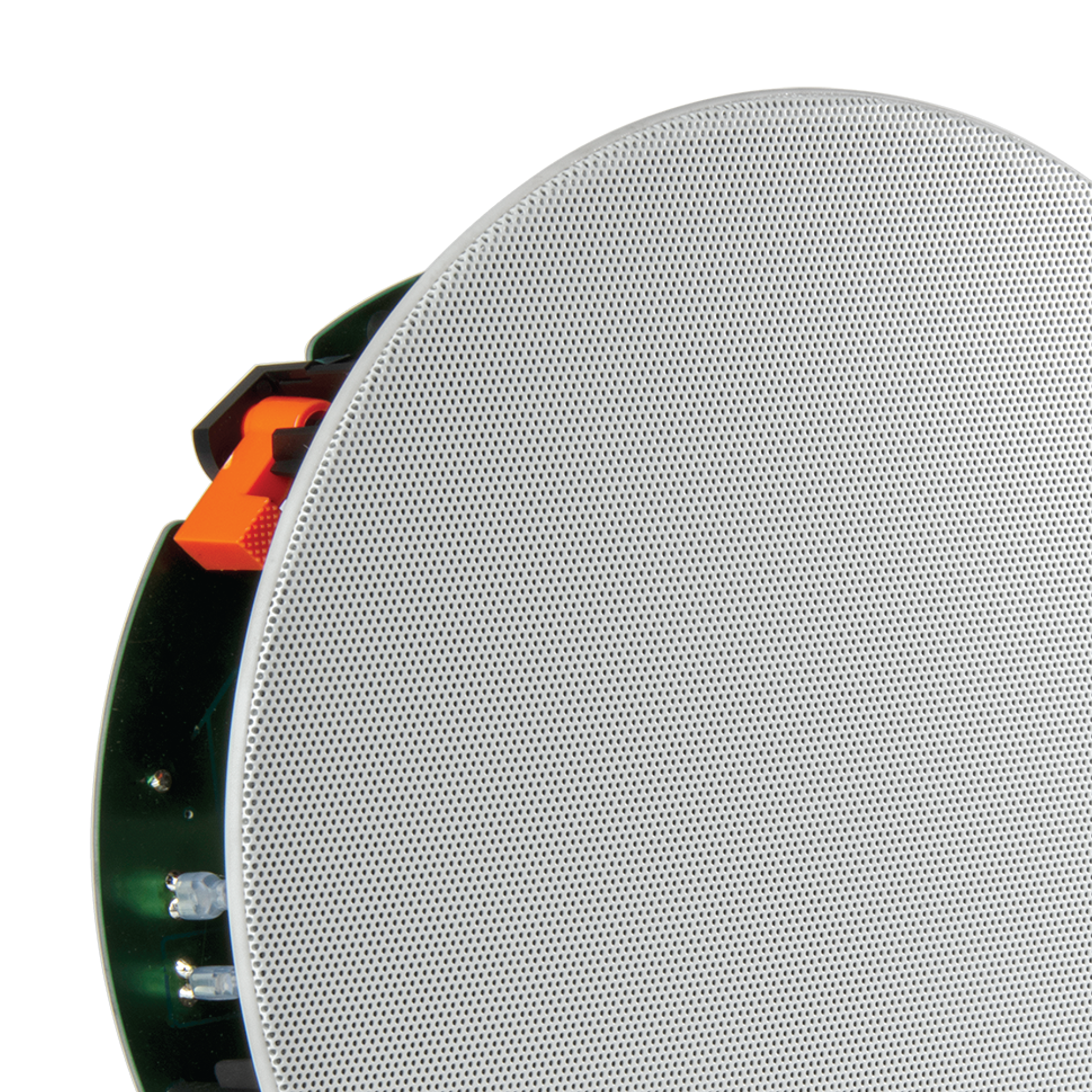

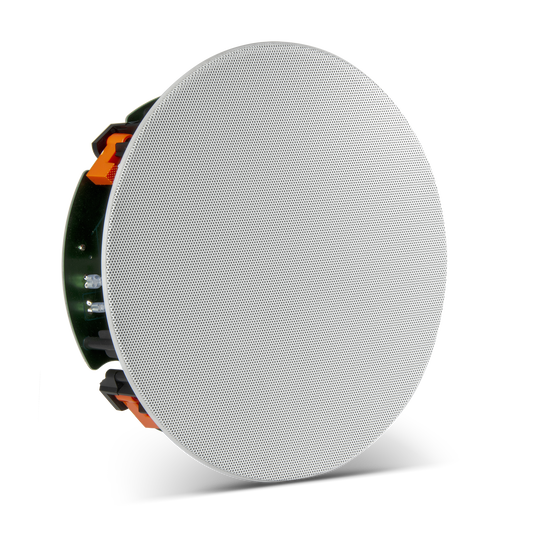

Zero bezel metal grille installs flush to wall or ceiling for a clean, inconspicuous appearance
Specs & Downloads
Item# JBL280C
Product Description
Stage 280C
The Stage 260C has an 8" (200mm) Polycellulose cone woofer and 1" (25mm) Aluminum dome tweeter with an acoustic lens waveguide. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing and acoustic lens tweeters have been incorporated into the design to ensure that the sound is clear and accurate.
General Specifications
High Frequency Transducer
1" (25mm) Aluminum dome with Acoustic Lens
Low Frequency Transducer
8" (200mm) Polycellulose cone woofer
Recommended Amplifier Power (Full Range)
20-120W RMS
Frequency Response
42Hz-25kHz (-6dB on-axis)
Sensitivity (2.83V@1m)
90dB
Nominal Impedance
8ohm
Crossover Frequency
3400Hz
Inputs
Nickel-plated spring-loaded connectors
Grille Dimensions
Dia 10.8in (275mm)
Cutout Dimensions
Dia 9.6in (244mm)
Mounting Depth
4.3in (108mm)
Product Weight (Kg)
2.2Kg
Shipping Carton Dimensions
L 12.7in (322mm) x W 12.7in (322mm) x H 5.6in (142mm)
Shipping Carton Weight
6.97lbs (3.16Kg)
