Studio 665C

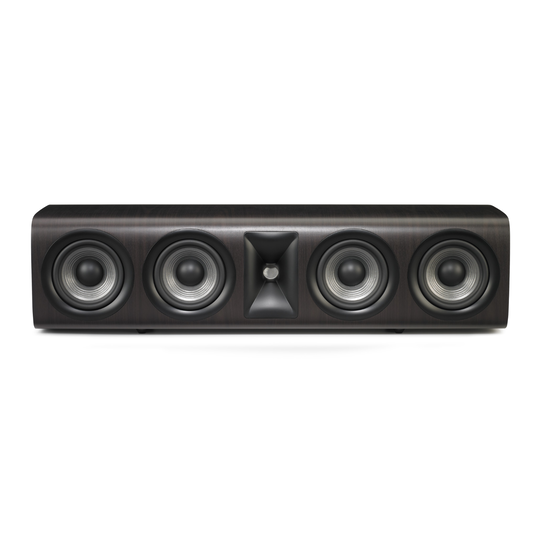

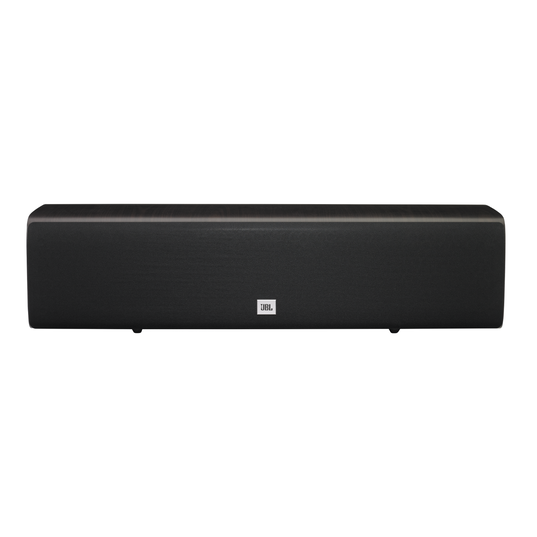

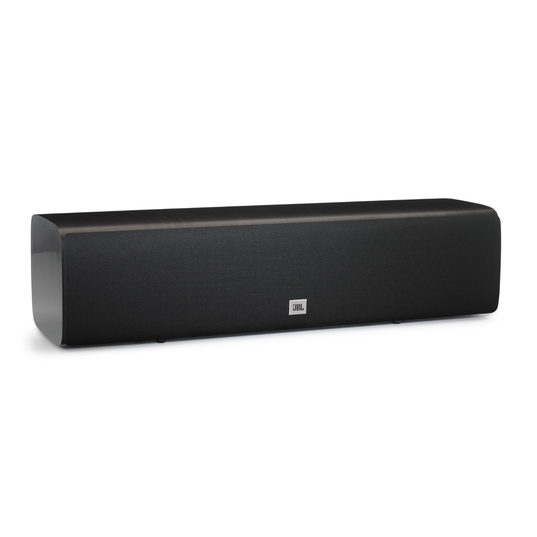

The JBL Studio 665C is a high-performance center channel loudspeaker utilizing JBL's 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented by quad 5.25-inch PolyPlas cone woofers. The elegant cabinet design includes a magnitically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.
Features
Top-graded PolyPlass cones
High-quality sounding compression drivers
New, appealing form factor
High-definition imaging Waveguide with high-frequency compression driver
Specs & Downloads
Item# JBLS665CW
Product Description
Studio 665C
The new JBL Studio 6 speaker system is everything your inner audiophile was hoping for. Complete with advanced PolyPlas cones, powerful acoustics speaker drivers, and fitted with an all-new, high-definition imaging waveguide using a high-frequency compression driver, your home listening experience will never be quite the same.
General Specifications
Quad 5.25", 2.5-way compression driver center loudspeaker
Yes
Quad 5.25" (133mm) PolyPlas Low-Frequency Woofer
Yes
High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression Driver
Yes
Recommended Amplifier Power
Max 200W
Frequency Response
58Hz – 40kHz
Sensitivity
90 dB @ 1M, 2.83V
Nominal Impedance
6 Ohms
Crossover Frequencies
600 Hz, 2.2 kHz
Enclosure Type

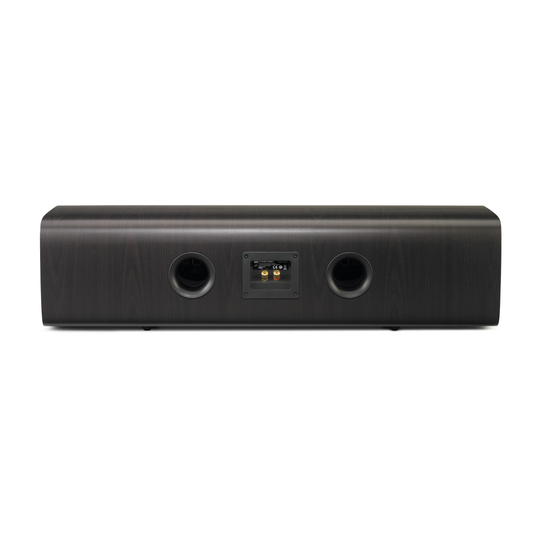

Bass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H)
760 x 230 x 190mm
What's in the box?
- 1 x JBL Studio 665C Center Loudspeaker
- 4 x Rubber Feet
- 1 x Owner’s Manual
- 1 x Warranty Card
