JBL SUBBPSL2

BassPro SL2

Self-Powered, 8" (200mm) Low-Profile Underseat Vehicle Subwoofer System

Variations



Features

Proprietary, shallow-profile woofer

Proprietary, shallow-profile woofer

The 8" (200mm) woofer in the BassPro SL2 is designed specifically to provide low distortion and great bass performance in an ABS enclosure with a remarkably compact footprint.

Efficient Class D amplifier

Efficient Class D amplifier

The amp that powers the BassPro SL2 produces minimal heat, and it doesn’t require a lot of current from the car’s electrical system.

Intelligent electronic design

Intelligent electronic design

The BassPro SL2 employs high-pass filters and limiters that deliver exceptional at-the-limits performance.

Crossover control

Crossover control

A manual crossover control (50Hz – 120Hz) lets you adjust how much upper bass and mid-bass the BassPro SL2 produces. Fine-tune the crossover to achieve a smooth transition from the BassPro SL2 to the rest of the system’s speakers.

Flexible EQ adjustments

Flexible EQ adjustments

Level control adjusts the BassPro SL2’s volume to the other speakers in your system, while Bass Boost control lets you minimize peaks or dips in bass frequencies in your car’s acoustic environment.

Line- and high-level inputs

Line- and high-level inputs

For added installation flexibility, the BassPro SL2 features both line- and high-level inputs. If you use the high-level inputs to connect the BassPro SL2 to the head unit, an input load switch lets you switch from “Low” to “High” to achieve optimum results.

Wired, remote level control capability

Wired, remote level control capability

The BassPro SL2 is compatible with the JBL GTO-RBC included, which enables you to control the bass level remotely.

Specs & Downloads

Item# SUBBPSL2

Product Description

Make Your Drivers Seat the Best Seat In The House

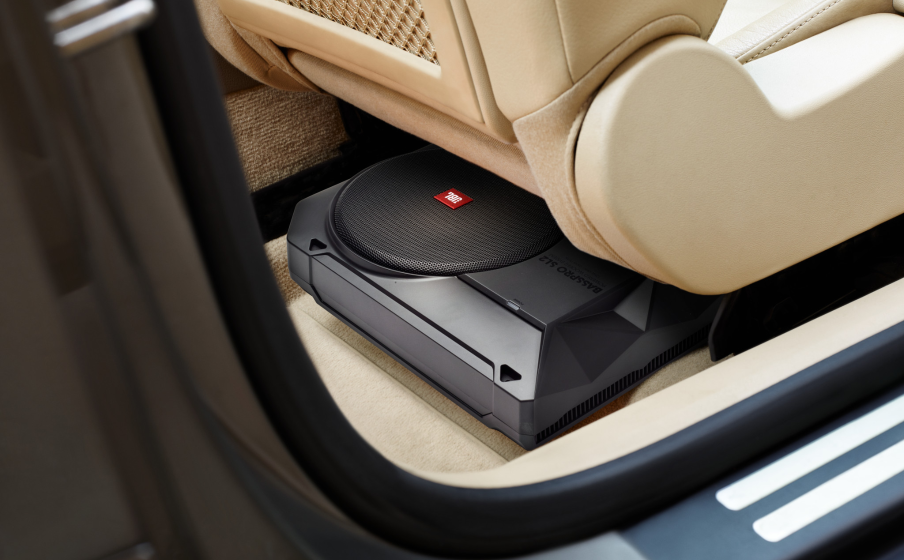

The BassPro SL2 self-powered subwoofer fits under the front seat of many vehicles, and adds deep full rich bass to your existing audio system. Its shallow-profile, 8" woofer is coupled with a custom tuned enclosure and is driven by a powerful Class D digital amplifier which making it a powerful solution. A fully variable crossover and Bass EQ are on-board to tune the BassPro SL2 to your system

General Specifications

Woofer 8" (200mm)
Amplifier Power 125W RMS
Frequency Response 35Hz – 120Hz
Fuse 15A
Maximum Current Draw 12A
Quiescent Current Draw <800mA
Input Sensitivity 0.05V – 2V Line-Level Input; 0.5V – 20V High-Level Input
Crossover Frequency 50Hz – 120Hz
Crossover Slope 12dB/octave
Bass Boost 0dB to +9dB @ 70Hz

Dimensions

(L x W x H) 13-9/16" x 9-7/8" x 2-13/16" (344mm x 250mm x 71mm)

What's in the box?

  • 1 x Powered woofer enclosure
  • 4 x Mounting screws
  • 1 x Remote bass level control
  • 1 x Owner’s manual
