JBL BASSPROSL

BassPro SL

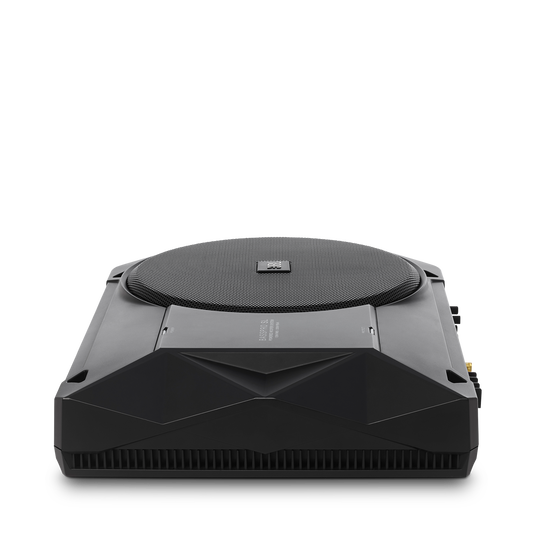

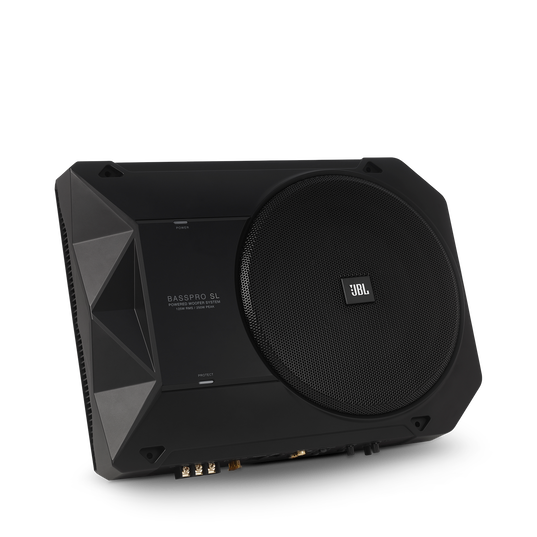

Powered, 8" (200mm) car audio under seat woofer system

Variations



Features

Proprietary, shallow-profile woofer

Proprietary, shallow-profile woofer

The 8" (200mm) woofer in the BassPro SL is designed specifically to provide low distortion, great bass performance contained in our proprietary ABS enclosure, which has a remarkably compact footprint.

Efficient Class D amplifier

Efficient Class D amplifier

The amp that powers the BassPro SL produces minimal heat, and it doesn’t require a lot of current from the car’s electrical system.

Intelligent electronic design

Intelligent electronic design

The BassPro SL employs custom circuitry to protect and provide optimum performance at varying output levels without impacting performance or clarity.

System Control

System Control

An electronic crossover control provides variable adjustment from 50Hz- 120Hz allowing you to dial-in BassPro SL to best integrate with the rest of your car audio system.

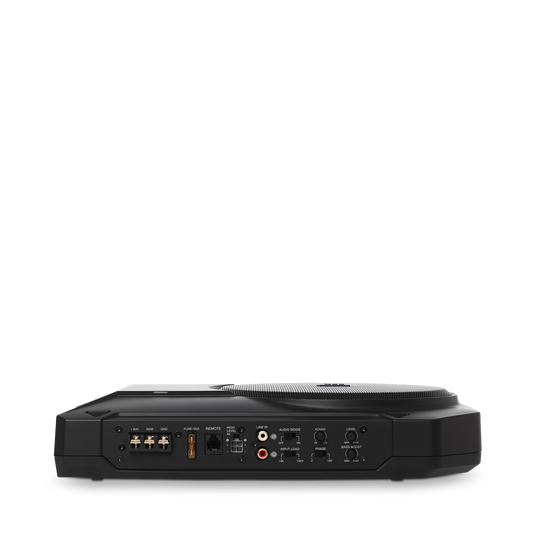

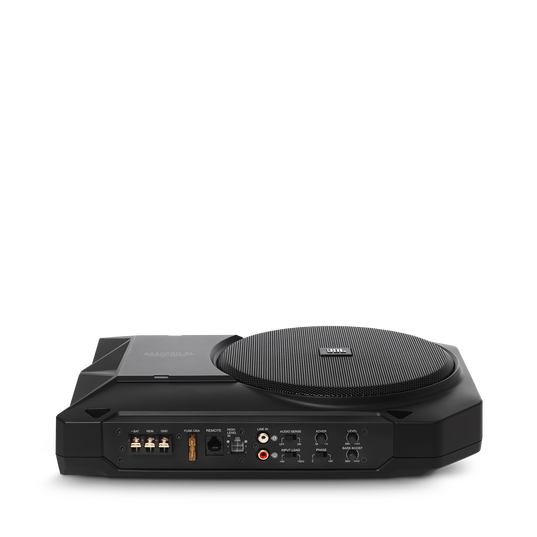

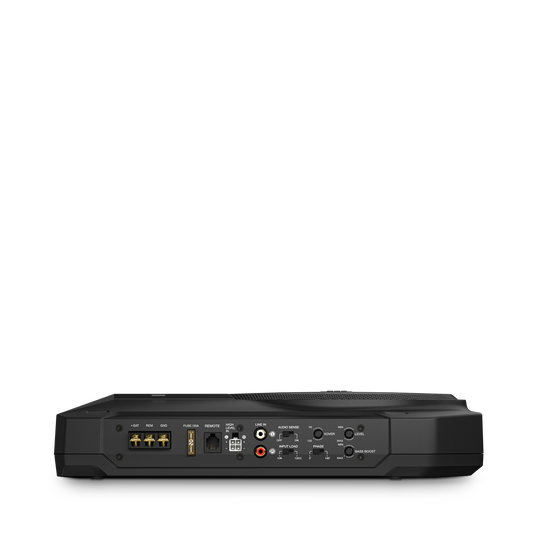

Line- and high-level inputs

Line- and high-level inputs

For added installation flexibility, the BassPro SL features both line- and high-level inputs allowing you to connect to both factory installed and aftermarket systems. If you use the high-level inputs to connect the BassPro SL to the head unit, an input load switch lets you switch from “Low” to “High” to achieve optimum results.

Wired, remote level control capability

Wired, remote level control capability

The BassPro SL is compatible with the RBC Remote Bass Controller (sold separately), which enables you to control the level remotely.

Specs & Downloads

Item# BASSPROSL

Product Description

Big bass boost from a compact woofer enclosure

The BassPro SL powered woofer fits under the front seat of many vehicles, and adds powerful bass to any car audio system. An electronic crossover control and flexible EQ adjustments let you tune the BassPro SL to your system, your car’s acoustic environment and your listening preferences. The energy-efficient digital amplifier provides a powerful engine to drive the subwoofer while staying cool even when driven hard. The BassPro SL delivers great bass output without taking up a lot of space.

General Specifications

Amplifier Power 125W RMS
Fuse 20A
Maximum Current Draw 12A
Quiescent Current Draw less than 800mA
Input Sensitivity 0.2V – 2V Line-Level Input; 2V – 20V High-Level Input
Woofer 8"; (200mm)

Audio Specifications

Frequency Response 35Hz – 120Hz
Crossover Frequency 50Hz – 120Hz
Crossover Slope 12dB/octave
Bass Boost 0dB to +9dB @ 70Hz

Dimensions

Width 9-7/8"; (250mm)
Length 13-9/16"; (344mm)

What's in the box?

  • 1 powered woofer enclosure
  • 4 mounting screws
  • Owner’s manual
