Features
1450-watt (max) Class D mono subwoofer amplifier

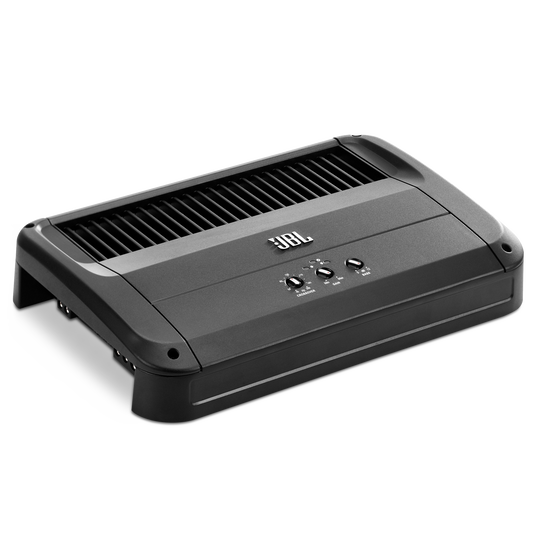

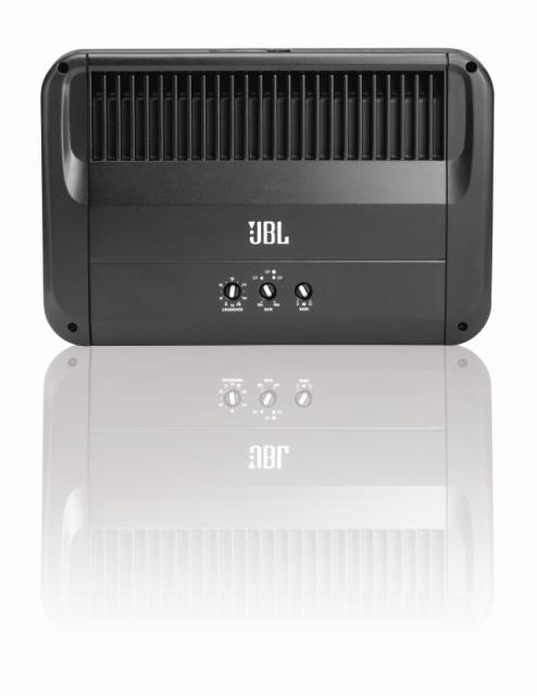

The GTO1001EZ Class D mono subwoofer amplifier is rated to deliver 1000 watts RMS at 2 ohms (1450 watts max). High-efficiency Class D amplifier design ensures the most boom for the buck, all in a modestly sized chassis. It’s an impressive amount of power in an attractive, easily configured amplifier. The wide input range and low current draw make the amplifier ideal for adding a subwoofer to existing OEM or aftermarket systems.
Easy setup and adjustment of input gain
The GTO-1001EZ subwoofer amplifier includes an input-level switch, a setup CD with test signals and LED indicators to tell you when the setting is correct. Simply set the switch, turn the input-level knob and watch for the green light that indicates that the setup is perfect. That’s all there is to it. There’s a reason why the amplifier’s model number contains EZ. This feature significantly reduces installation time and delivers excellent results.
Wired or auto-sensing remote turn-on
JBL engineers have configured the GTO-1001EZ amplifier to turn on with a wired input (as in aftermarket systems) or with an auto-sensing circuit that activates whenever the amp detects an audio signal. The auto-sensing feature is helpful when you’re upgrading OEM audio systems that don’t include a remote trigger wire. It’s easily defeated by a switch when you’re using a wired remote turn-on input.
Input signal up to 15 volts (line-level or speaker-level)
The GTO-1001EZ amplifier accepts a wide range of inputs up to 15 volts with line-level or speaker-level signals. Using RCA-to-bare-wire adapters included with the amplifier, you can connect to virtually any OEM or aftermarket audio system. The end result is an amplifier that works with the widest range of cars on the road.
Built-in, variable low-pass active crossover
An active 12-decibel/octave low-pass crossover offers variable filter points between 40Hz and 280Hz. Importantly, all filter points on the adjustment dial match the silkscreened frequency points on the amplifier chassis – a feature that not all amps provide.
Built-in, variable bass boost
The GTO-1001EZ provides a range of bass boost from 0 decibels to +12 decibels, centered at 45Hz. This is a useful feature for restoring some bass that may be limited by the low-frequency response of certain speakers in the system – or to enhance a particular range of bass that the speakers already produce well.
High-efficiency Class D operation
The high-efficiency, low-current and low-heat performance of Class D amplification ensures high power output from the GTO-1001EZ subwoofer amplifier. It also minimizes any need for upgrades to your vehicle’s electrical system.
Automatic thermal and low-impedance protection
Amplifier protection is just like insurance; you hope you’ll never need it, but it’s sure nice to have when you do. Thermal protection keeps the GTO-1001EZ amplifier from overworking itself to the point of premature failure. Low-impedance protection keeps the amplifier safe from any speaker or wiring failures that result in short circuits.
Compatible with wired remote bass control (sold separately)
The GTO-1001EZ amplifier is compatible with the optional wired-remote bass control, which provides easy adjustment of subwoofer-channel bass levels from the front seat. The wired remote is easy to connect with a telephone-style jack and can be mounted in a variety of positions to suit the vehicle and location preferences.
Specs & Downloads
Item# GTO-1001EZ
Product Description
High-performance subwoofer power for enhanced sound on the move.
General Specifications
Audio Specifications
Dimensions
What's in the box?
- (1) GTO Subwoofers Amplifier
- (1) Setup CD
- (2) Bare Wire-to-RCA adapters
- (1) Owners Manual
Documents & Downloads
The latest owner's manuals, quick start guides, and documents.
